Test printing – brief report

Forest Rays

I’m in my 4th round of test printing for the Forest Rays project. It’s been a bit of a struggle, mostly because there are so many areas to print – 11 wood faces, 18 printable areas, 18 sets of registration marks, and lots of areas that overlap so they get printed multiple times.

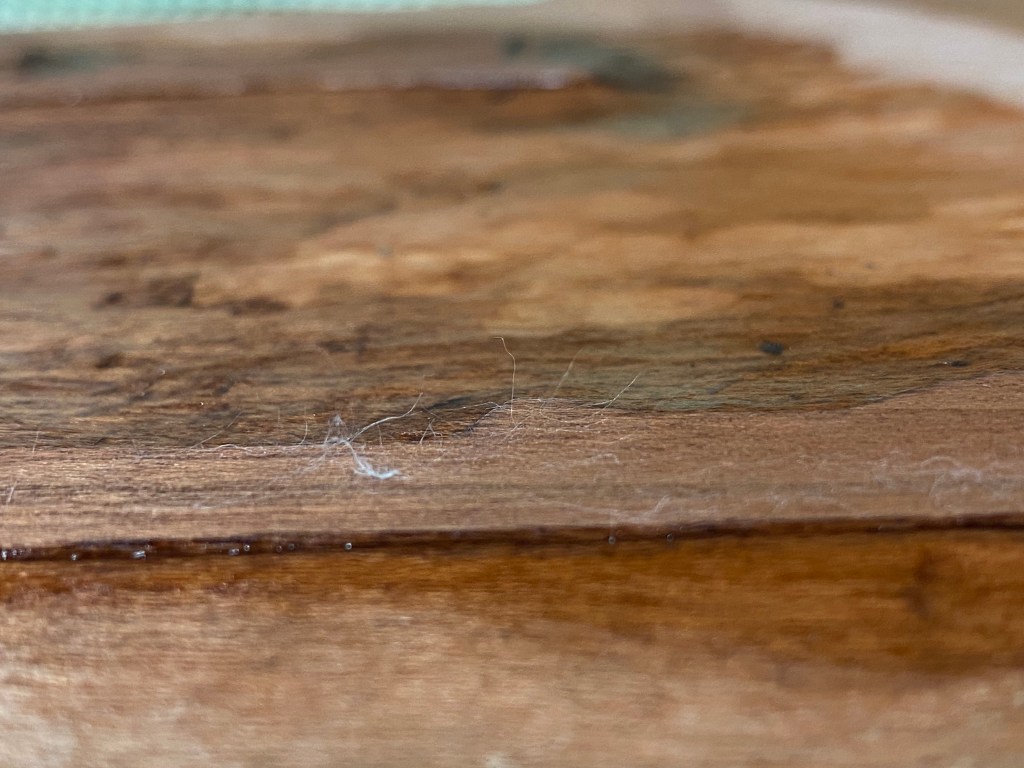

I recently received some “Student Kozo” paper from Kitaro, and with some hope, am using it for this round of testing. Unfortunately it’s weak and floppy when damp, and seems to shrink and swell more than I’d like. And more frustrating for testing this particular print, when an area gets more than one or two impressions, fibers start to separate from the face of the paper; you can see that below.

I’m plowing forward despite the frustrations, and am succeeding at my aim to get more pigment onto the prints! Pretty soon though, I need to just take the plunge and actually print the things. I have a stack of Shin Hosho from Wood Like Matsumura set aside for this one; that paper is pretty tough!

I wonder if I might be able to add more sizing to this paper to toughen it up and be able to have less trouble testing prints that have lots of overlays. At any rate, it’s pretty nice for the price, so I can use it for simple prints without many overlapping colors.

Proofing paper, perhaps


Or perhaps more than that, incoming from Japan!

It’s a roll of 10 sheets of the “student” 100% kozo (mulberry) paper from Kitaro. The top blue line says, 越前手漉き和紙、aka “Echizen tesuki washi”, or Echizen handmade Japanese paper. I’m looking forward to trying it out! It’s quite inexpensive for 100% mulberry paper. I’m not sure what makes it student grade – imperfections, maybe? I won’t really know until I plan some prints, take some out, and slice up a sheet for testing. From first inspection, it seems nice and sturdy, so hopefully the sizing is adequate. Who knows, maybe this paper will be worth more than testing material?

(Image credit to my friend Lou Hurlbut for the little print you can see on the wall!)

Planning new prints. Ahem. I’ve been stuck in that stage for awhile since I returned from Japan. I’ve got two ideas going – I will hint at them in cartoon form. These are purposefully low-res images because the designs are not final and a hi-res digital image just looks quite fake.

This one is taking lots of time to develop and I may not ever get there! But I love the idea.

This one is close! Obviously clouds are a recurring theme in these ideas. This was a real cloud that I saw in Junction, Texas. We wanted rain sooo bad! It was raining over there, 80 miles away where the cloud was, but not where we were. As the sun set, the colors just got more and more dramatic.

OK back to the studio!

Paper preparation


Here’s the paper I will use for the current print. I’ve got 25 pieces of Kitaro’s Kizuki, and 5 pieces of a few other kinds I had lying around that I will use for testing. Because this is a really small print, I picked a sheet of the Kizuki that was on the thin side. It’s a completely handmade product, and there’s actually noticeable variation in the thickness.

I’m applying a small dot of clear nail polish to one corner – the corner that will be inserted into the corner kento (registration notch) – of each piece of paper. This is a trick I learned from the printers at Mokuhankan. For a simple print with only one or two impressions it wouldn’t be that important, but reinforcing this corner prevents it from wearing and changing shape with repeated impressions. That way it’s possible to get precise registration every time.

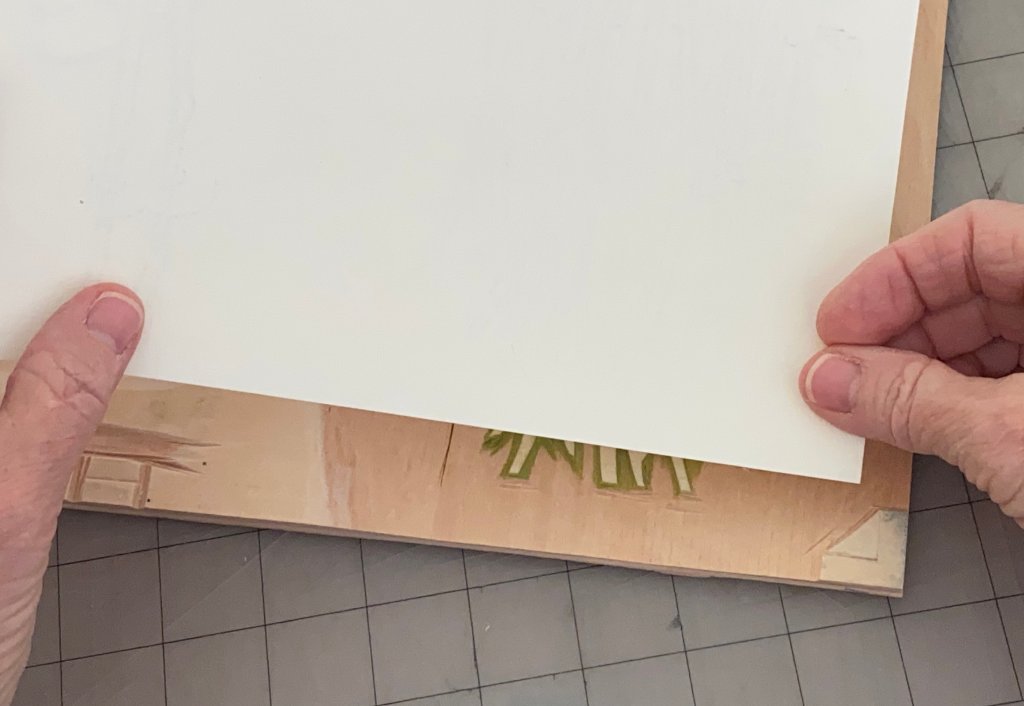

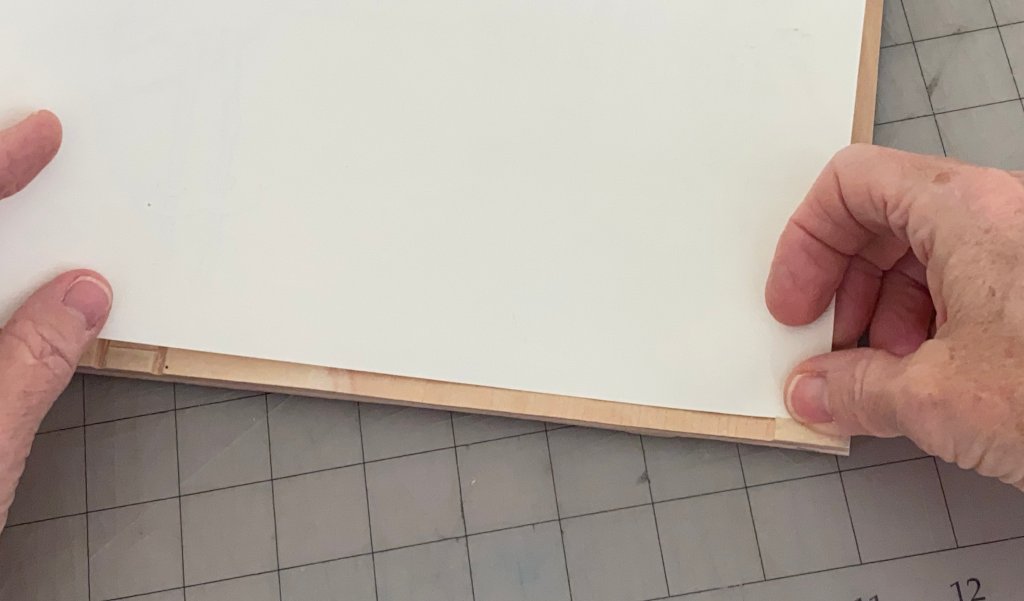

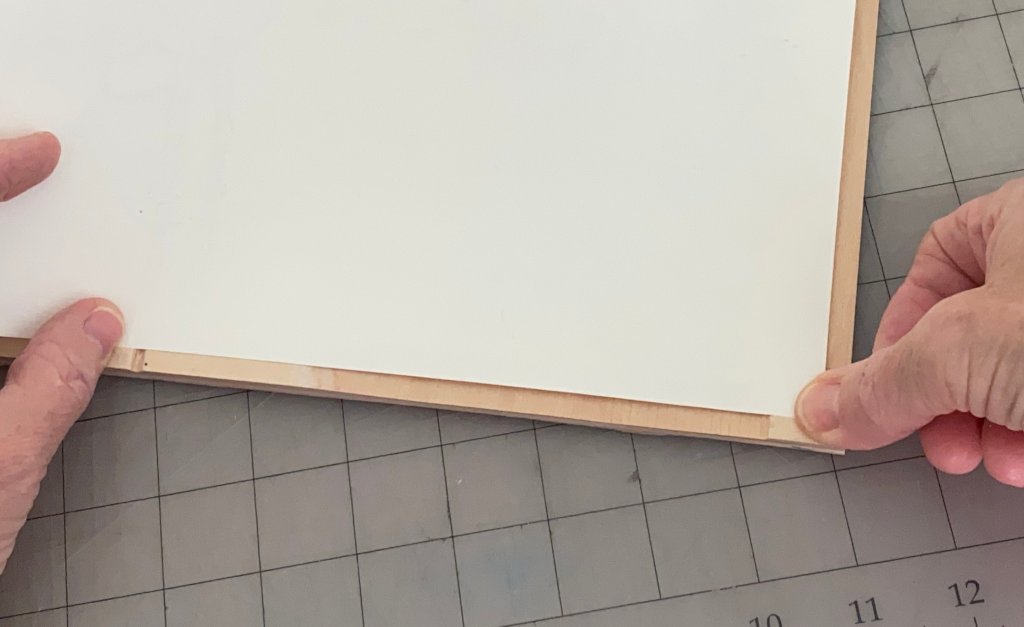

Here’s how the paper is placed when printing. I’m demonstrating with a block for a different print. First the corner is inserted into the corner notch on the right, then it’s placed against the little ledge on the bottom left, then laid flat on the block. It’s not necessary to reinforce the edge on the bottom left, but the corner can easily wear if it’s not strengthened!

Almost oops!


Some time ago, before the plague times, I ordered and received some very nice washi from a papermaker in Echizen. It’s really lovely, smooth, good weight, 100% kozo, and ALREADY SIZED! I am looking forward to EMS shipping starting up from Japan again so I can order some more. What I received was a very high quality product, clean and uniform in texture and sizing.

My coworker, Corax the black cat, really enjoyed playing in the box. He’d get in, and scratch scratch tap tap. Hours of entertainment. I finally got around to flattening the box and putting it in recycling. But wait — what’s that? There was something taped to the bottom with that typical Japanese brown fabric-reinforced tape, wrapped in brown paper the same color as the surrounding cardboard. I’m glad I noticed! It was a sample book.

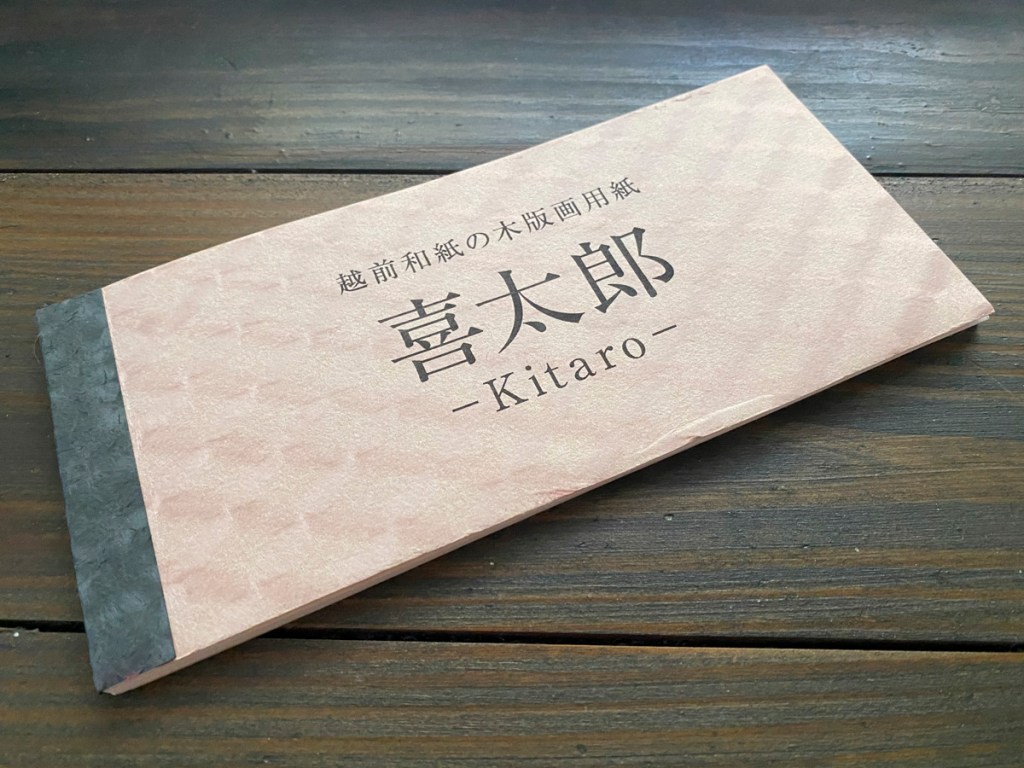

This is a pretty fancy sample book.

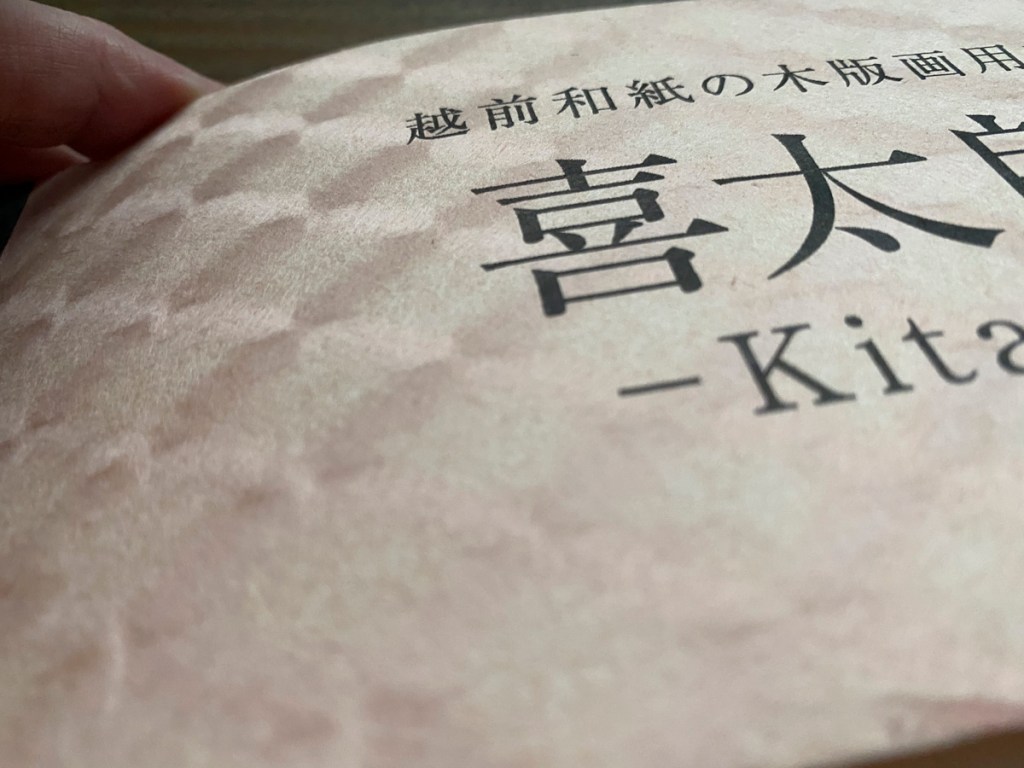

The paper on the cover has some really interesting iridescent patterning, and when you let light shine through it, it looks like the fibers that provide the pattern are denser than the rest.

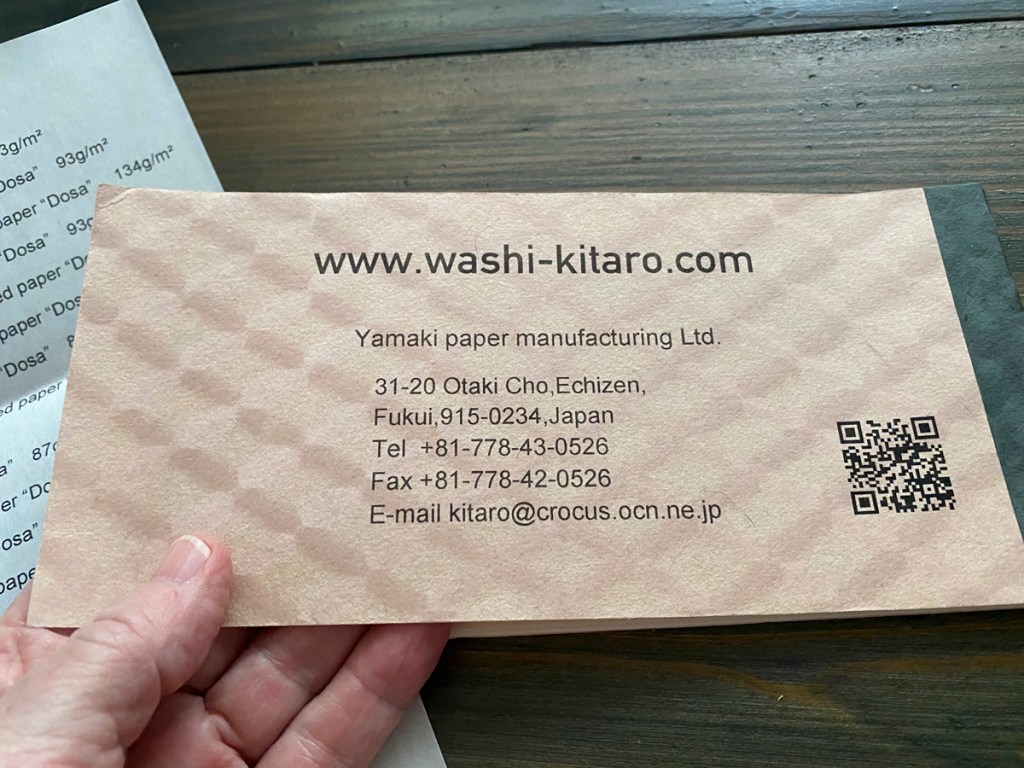

At the end of the booklet was another price list (same prices), on a paper that has another interesting pattern of iridescence. And that’s the back of the booklet, with their contact info.

I’m looking forward to getting some more of this paper!
